Description

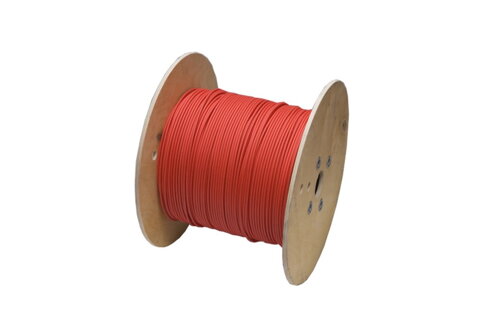

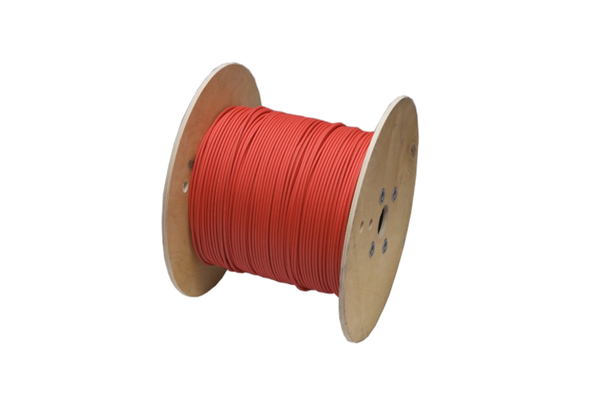

KBE solar cable DB EN 50618 H1Z2Z2-K 6.0 mm² (PV) 500m one-way drum - 6 sqmm red, can be laid in the ground (KBE No. 730600015040QU).
KBE solar cable H1Z2Z2-K is suitable for free moving and free hanging use, as well as for fixed installation in photovoltaic systems. The area of application is intended for indoor, outdoor, industrial as well as commercial and agricultural operations on insulated devices and systems (protection class II).
Insulation material / jacket material
-
- Cross-linked special polyolefin
- 36 Shore D
- Insulation resistance in a water bath at 90 ° C> 3GΩ * m
- Halogen free
- Weather and UV resistant
- Resistant to ozone
Temperature range
-
- - 40 ° C to + 90 ° C
- Highest temperature at the conductor 120 ° C, based on EN60216-1 (20,000 h, 50% residual expansion)
Rated voltage
-
- U0 / U = 1000/1000 VAC
- U0 / U = 1500/1500 VDC
- Max. 1800 VDC (wire / wire, ungrounded system, no load circuit)
Can be laid underground
-
- KBE internal test according to UL 854
- (Impact resistance test and crushing resistance test)
- Installation instructions in DIN VDE 50174-1; § 5.2.4 and DIN VDE 0891 part 6, § 4.2
Flame resistance
-
- According to DIN EN 60332-1-2
Certificates
-
- TÜV 2 PfG 1169 / 08.07, R 60027876
Guarantee
-
- 25 years product guarantee
Delivery note
- Cut to size
- Smallest delivery unit: 10m
