Description

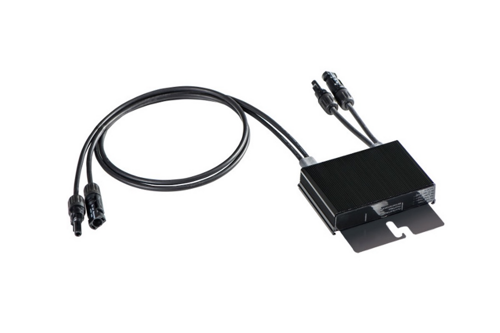

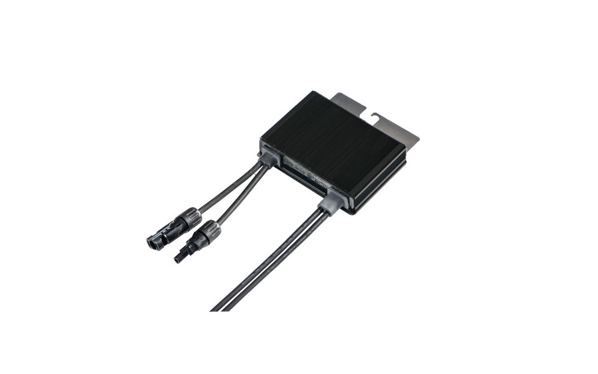

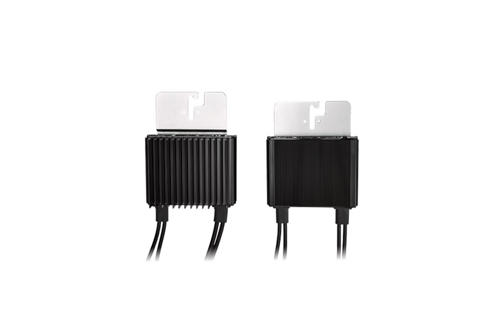

SolarEdge P485 Single (MC4) power optimizer for operation with SolarEdge inverters and short string lengths - for modules with high voltage, with 1-phase systems at least 6 modules per string, with 3-phase systems at least 14 modules per string.
Input
-
-
- Nominal DC input power: 485 W.
- Absolute maximum input voltage (Voc): 125 Vdc
- MPPT operating range: 12.5-105 Vdc
- Maximum continuous input current (Isc): 10.1 Adc
- Maximum efficiency: 99.5%
- Weighted efficiency: 98.8%
- Overvoltage category: II
-
Output in operation (power optimizer connected to WR in operation)
-
-
- Maximum output current: 15 Adc
- Maximum output operating voltage: 85 Vdc
-
Output in standby (power optimizer separated from inverter or inverter off)
-
-
- Safety output voltage per power optimizer: 1 Vdc
-
Standards Compliance
-
-
- EMC: FCC Part 15 Class B, IEC61000-6-2, IEC61000-6-3
- Security: IEC-62109-1 (security class II), UL1741
- Rohs: Yes
- Fire protection: VDE-AR-E 2100-712: 2013-05
-
Mechanical specifications
-
-
- Maximum system voltage: 1000 Vdc
- Plug connector on the module side: MC4
- Output connector: MC4
- Length of the output cable: 1.2 m
- Operating temperature range: -40 - +85 ° C
- Protection class: IP68
- Relative humidity: 0 - 100%
- Dimensions: 129 x 90 x 49.5
- Weight: 0.845 kg
-
