Description

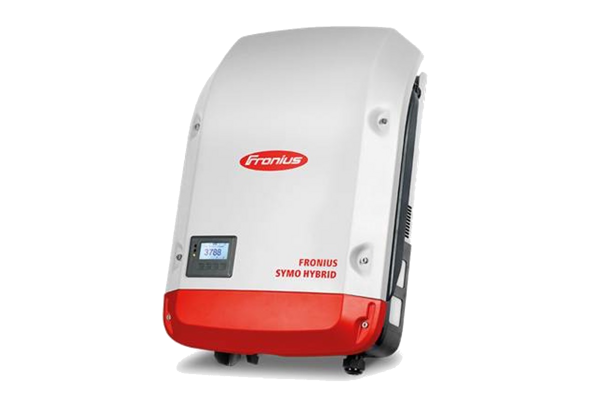

Fronius Symo Hybrid 3.0-3-S is a three-phase and transformerless inverter provided with a WI-FI/LAN/Webserver, AC-NENNLEISTID-3,000 W, MPP-Tracker:1.0, Protection degree: IP 65, and surge category (DC/AC): 2/3. This Inverter combines Battery Charger, Battery inverter, hybrid Inverters, Controllers and system monitoring in one Device.
This inverter combines a battery charging system, battery inverter, hybrid inverter, controller and system monitoring solution in one device. With AC power categories ranging from 3.0 to 5.0 kW, the inverter is able to process up to 8.0 kW in order to supply household consumers with energy and to temporarily store surplus energy from a photovoltaic system in a battery storage device. Thanks to an intelligent energy flow management system, the built-in Multi Flow Technology supports simultaneous energy flows in all directions as well as AC-, DC- and AC- & DC coupling of the battery storage. The result: maximum self-consumption and optimum system profitability.
Fronius Symo Hybrid allows surplus energy from a photovoltaic system to be stored in various batteries.
The Fronius Symo Hybrid is compatible with the Fronius Solar Battery as well as storage devices from other manufacturers, such as LG Chem or BYD, and thus the ideal hybrid inverter. Intelligent Multi Flow Technology enables AC and DC coupling of battery storage. In addition, loads are supplied at the same time as the battery is being charged – even in back-up power mode.
The Fronius Symo Hybrid Inverter is very flexible for every storage system, because compatibility with the BYD Battery Box H 6.4, H 7.7, H 9.0, H 10.2 and H 11.5 means. Fronius is the only solutions provider that, in conjunction with BYD, can also supply power to three-phase consumers in emergency power situations as Back-up power. Since BYD batteries can be expanded on a modular basis, the storage capacity can be adapted to the individual requirements of the customer at any time.
Compatible Batteries
-
-
- Fronius Solar Battery
- BYD Battery-Box H6.4, H7.7, H9.0, H10.2, H11.5
- LG CHEM RESU 7H, LG CHEM RESU10
- BYD Battery-Box Premium HVM 8.3, HVM 11.0, HVM 13.8, HVM16.6, HVM19.3, HVM22.1
-
Product features
-
-
- Mains connection: 3-phase
- AC nominal output: 3,000W
- Max. output power: 3,000VA
- AC output current: 8.3A
- Transformerless: Yes
- Reverse polarity protection: Yes
- MPP trackers: 2
- Active cooling: Yes
- Dimensions (H x W x D): 645 x 431 x 204mm
- Weight: 19.9 kg
- Degree of protection: IP65
- Warranty: 2 years
-
Certificates and compliance with standards
ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777 1), CEI 0-21 1) , NRS 097
Downloads
| PDF FORMAT | DOCUMENT |
 |
Datasheet – Fronuis Energy Package (457 KB) |
|
|
Datasheet – Fronius Symo Hybrid 3.0-3-S (193 KB) |
|
Operating Manual – Fronius Symo Hybrid 3.0-3-S (3,000 KB) |
|
Installation Instruction Manual – Fronius Symo Hybrid 3.0-3-S (2,800 KB) |
|
Installation Manual – Fronius Symo Hybrid 3.0-3-S (7,000 KB) |
