Description

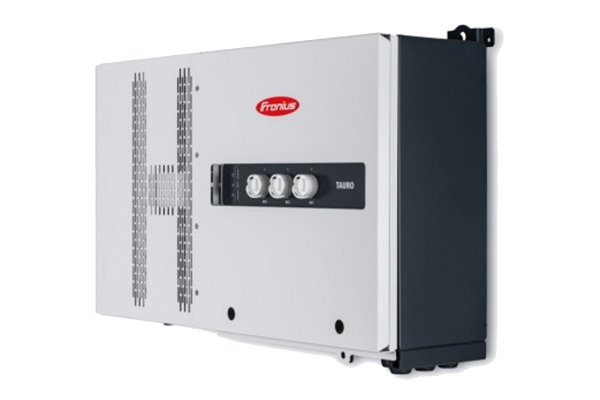

Fronius Tauro ECO 50-3-P is design to efficiently and economically perform. It is a three-phase feed transformerless Inverter, which is provided with 1 MPP tracker, a maximum PV generator power of 75 kWpeak for large PV systems and a communication system include, and a communication system of Ethernet LAN RJ45, WLAN, 6x digital in/out + 6x digital in, Emergency stop (WSD), Datalogger and web server, and 2x RS485.
The three-phase Fronius Tauro in the 50 to 100 kW power classes promises maximum performance, even under the harshest conditions. With its smart hardware design, it not only contributes to BOS cost optimization, but also offers unprecedented flexibility in system design. With the Fronius Tauro, both centralized (P variant) and decentralized system designs (D variant) can be implemented. Simplest installation and the fastest service on the market also guarantee maximum safety.
Product features
-
-
- AC nominal output: 50kW
- Max. output power: 50kVA
- AC output current: 75,8A @ 220V , 72,5A @ 230V
- Degree of protection: IP65
- Number of MPP trackers: 1
- Max. input current: 87,5A
- DC input voltage range: 580-1,000V
- Feed-in start voltage: 650V
- MPP voltage range: 580-930V
- Max. PV generator power: 75kWpeak
- Max. short-circuit current inverter: 178A
- Max. input current string: 14,5A
- Max. short-circuit current string: 20A
- Max. AC fuse size rating: 355A
- Dimensions (H x W x D): 775 x 1,109 x 346mm
- Weight: 94kg
-
Advantages
-
-
- Robust and durable
- Lower costs and efficient servicing
- Intelligent control and an open system
- Design flexibility
- Repairable and sustainable
-
Certificates and compliance with standards
VDE-AR-N 4105, VDE-AR-N 4110, IEC 62109-1/-2, IEC 62116, IEC 61727 R25, AS/NZS 4777, CEI 0-16, CEI 0-21, EN 50549-1/-2, VDE 0126-1-1.
Downloads
| PDF FORMAT | DOCUMENT |
|
|
Datasheet – Fronius Tauro ECO 50-3-D (258 KB) |
 |
Operating Instruction Manual – Fronius Tauro ECO 50-3-P (11,000 KB) |
|
Certificate of Country of Origin – Fronius Tauro ECO 50-3-P (30 KB) |
|
Certificate of Conformity – Fronius Tauro ECO 50-3-P (333 KB) |
