Description
The beating heart of any home.

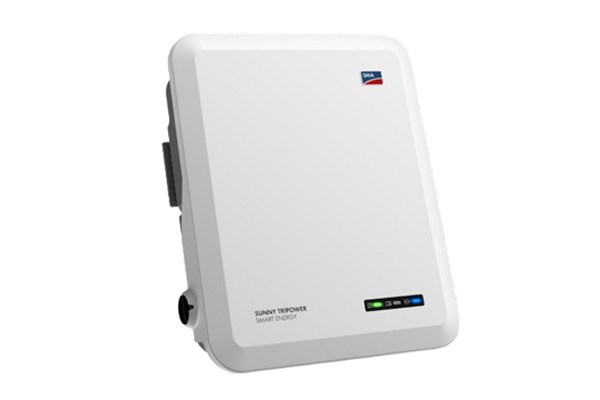

This SMA STP 8.0 Smart Energy Inverter is a three-phase / DC coupled and transformerless inverter. It is convenient all round with full-scale professional support for solar power professionals, automated service thanks to SMA Smart Connected a warranty extension from 5 to 10 years – free of charge.
The Sunny Tripower Smart Energy hybrid inverter is the two-in-one system for supplying solar power at home. With this, SMA has combined smart technology and integrated services to create a space-saving compact system, drawing on more than 30 years of experience in storage. With Sunny Tripower Smart Energy, users can easily and conveniently generate, use and store solar power. It is possible to make additions to the system at any time, incorporating e-mobility or heat pumps. The integrated battery-backup function safeguards the household electricity supply even in the event of a grid failure. That makes domestic PV systems comprehensive, smart energy systems with solar energy self-sufficiency of up to 100 percent.
Technical Data and Features
-
-
- Max. PV (DC) array power Input: 12,000 Wp
- MPP-voltage range: 330 - 800 V
- Max. input voltage: 1,000 V
- Rated power (at 230 V, 50 Hz): 8,000 W
- Max. apparent AC power: 8,000 VA
- Min. input voltage / initial input voltage: 150 V / 180 V
- Max. input current input A / input B: 12.5 A / 12.5 A
- Max. efficiency / European efficiency: 98,2 % / 97,8 %
- Operating temperature range: −25°C to +60°C
- Dimensions (W x H x D): 500 x 598 x 173 mm
- Weight: 30 kg
- Degree of protection (according to IEC 60529): IP65
- Climatic category (according to IEC 60721-3-4): 4K26
- Warranty: 5 years
-
Certificates and permits (more available upon request)
CE, IEC 62109-1/-2, TOR Generator type A, VDE0126-1-1, VDE AR-E-2510-2, C10/11, VDE-AR-N4105.
Store energy
-
-
- Three-phase / DC-coupled
- Integrated battery-backup function
- Fast charging
- Compatible with high-voltage
- batteries from leading manufacturers
-
Smart and effective
-
-
- Smart energy management with the Sunny Home Manager
- Maximum energy yield thanks to SMA ShadeFix
-
Connect to the grid easily
-
-
- Intuitive commissioning via app
- Quick and easy to install thanks to external terminals
- Compact design means minimum space requirements
-
