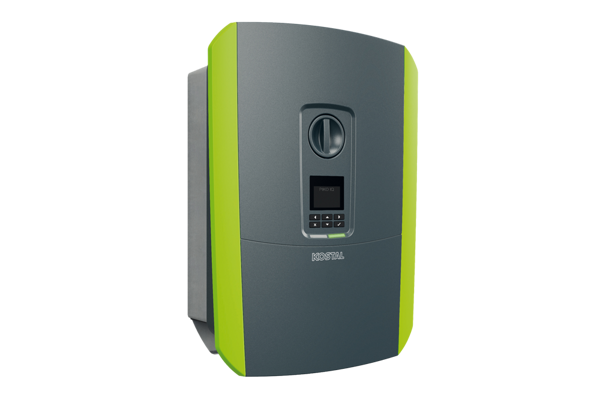

KOSTAL PLENTICORE plus 3.0 Inverter

KOSTAL PLENTICORE plus 3.0 Inverter

Product rating: 5/5 (4x)

Your rating:

AC Nominal Output (W): 3,000
Max. Output Power (VA): 3,000
DC input voltage range (V): 120-1,000
Number of MPPT trackers (-): 3
Frequency (Hz): 50
Dimensions (mm): 563 x 405 x 233
Weight (kg): 19.6
Protection Class (-): 1
Degree of protection (-): IP65

KOSTAL PLENTICORE plus 3.0 is a new standard hybrid inverter (all-in-one-max) with PV-Power of 4.5 kWp, AC-Power of 3.0 kw, 3 MPP-Tracker, and 3-phase feed-in.


Warehouse number:

Availability: In stock

Producer: KOSTAL Solar Electric GmbH


KOSTAL PLENTICORE plus 3.0 is a new standard hybrid inverter (all-in-one-max) with PV-Power of 4.5 kWp, AC-Power of 3.0 kW, 3 MPP-Tracker, and 3-phase feed-in.


Technical Data

      • Rated power : 3.0kW
      • Max. apparent output power: 3.0kVA
      • Max. PV power (cos φ = 1): 4.5kWp
      • Nominal DC power: 3.09kW
      • Rated input voltage: 570V
      • Number of independent MPP trackers: 3
      • Maximum efficiency: 97.1%
      • European Efficiency: 95.3%
      • Ambient temperature: -25°C ... +60°C
      • Degre of protection: IP65
      • Dimensions (H x W x D): 563 x 405 x 233mm
      • Weight: 19.6kg
      • Optional warranty extension for (years): 5/10/15



      • PV hybrid inverter with battery input with optional activation code
      • Compatibility with various high‑voltage batteries
      • 3 MPP trackers suited to the layout of almost all roofs
      • Extended MPP range – perfect for repowering


Smart performance

      • Fast, self-learning shadow management – adapts individually to the installation site
      • Dynamic active power control and 24-hour home-consumption measurement
      • Self-learning generation and consumption forecast – for optimum self-consumption
      • Low conversion losses due to DC coupling and high-voltage battery
      • Prepared for additional battery charge via AC energy sources

Smart connected

      • Smart Communication Board – future proof, new functions can be added via the integrated Web Application
      • Display, data logger, system monitoring, network and control interfaces integrated as standard, WLAN Ready via external USB WLAN adapter
      • Free Solar Portal for monitoring the PV system
      • EEBus and Sunspec for Smart Home integration

Easy to install

      • Simple device configuration using commissioning wizard
      • Safe installation due to clearly arranged, separate terminal compartment and protected power electronics
      • Compatible with RCD type A
      • Auto update and remote support


Compatible Energy storage batteries

      • BYD Battery-Box Premium HVS
      • BYD Battery-Box Premium HVM 11.0
      • BYD B-Box HV



CE, GS, CEI 0‐21, CEI10/11, EN 62109‐1, EN 62109‐2, EN 60529, EN 50438*, EN 50549‐1*, ENA/EEA, G98, G99, IFS2018, IEC 61727, IEC 62116, RD 1699, RFG, TF3.3.1, TOR Erzeuger, UNE 206006 IN, UNE 206007‐1 IN, UTE C15‐712‐1, VDE 0126‐1‐1, VDE‐AR‐N 4105, VJV2018.
