Description

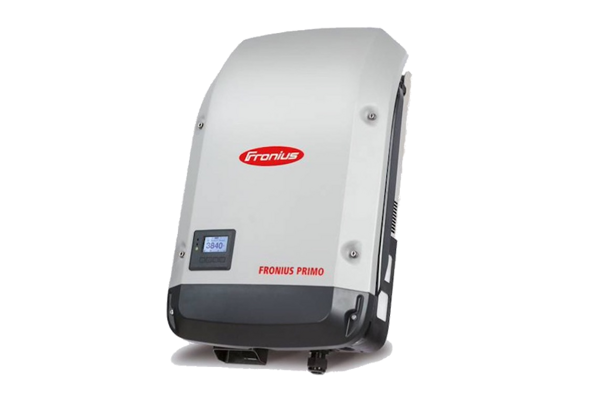

Fronius Primo 3.5-1 is a single-phase and transformerless Inverter provided with WLAN/LAN/Webserver, single phase, AC output power 3,500W, transformerless, 2 MPPT, IP 65, integrated Com-Card function, integrated DC circuit breaker, integrated energy management relays, and Smart Grid Ready.
With power categories ranging from 3.0 to 8.2 kW, the Fronius Primo perfectly complements the SnapINverter generation. This single-phase, transformerless device is the ideal inverter for private households. Its innovative SuperFlex Design provides maximum flexibility in system design, while the SnapINverter mounting system makes installation and maintenance as easy as possible. The communication package included as standard with WLAN, energy management, numerous interfaces, and much more besides, makes the Fronius Primo a communicative inverter for owner-occupiers. The warranty period is 2 years with an optional extension of up to 5 years when registering online.
Technical Specifications
-
-
- Mains connection: 1-phase
- AC nominal output: 3,500 W
- Max. output power: 3,500VA
- AC output current: 15.1 A
- MPP trackers: 2
- Active cooling: Yes
- Dimensions (H x W x D): 645 x 431 x 204 mm
- Weight: 21.5 kg
- Protection class: 1
- Degree of Protection: IP65
- Warranty: 2 years.
-
Product benefits
-
-
- Compact design
- Effective DC coupling
- Single-phase Back-Up function
- Complete interface set
- Free 5-year warranty extension upon online registration
-
Compatible batteries
-
-
- LG CHEM RESU7H
- BYD Battery-Box Premium HVS 5.1
- BYD Battery-Box Premium HVS 7.7
- BYD Battery-Box Premium HVM 11.0
- BYD Battery-Box Premium HVM 13.8
- BYD Battery-Box Premium HVM 16.6
- BYD Battery-Box Premium HVM 19.3
- BYD Battery-Box HV
-
Certificates and compliance with standards
DIN V VDE 0126-1-1/A1, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 4777-2, AS 4777-3, G83/2, G59/3, CEI 0-21, VDE AR N 4105.
Installation and maintenance
-
-
- DC Connection and disconnection is built into the mounting bracket. No professional installation is required for mounting the sensor
- Easy firmware updates via USB key
- On-board reliability guarantees excellent operation and production
- The intelligent network allows remote control of inverter system tools and power generation
- Flexible mounting options from 0 ° to 90 ° (horizontally vertically)
-
Downloads
| PDF FORMAT | DOCUMENT |
|
|
Datasheet – Fronius Primo 3.5-1 (1,400 KB) |
 |
Operating Manual – Fronius Primo 3.5-1 (1,200 KB) |
|
Installation Instruction Manual – Fronius Primo 3.5-1 (1,800 KB) |
|
Installation Manual – Fronius Primo 3.5-1 (3,400 KB) |
