Description

The machine consists of a high-strength frame, which is equipped with a hydraulically operated mechanism used to adjust the plough for work out of the furrow (on-land). It is therefore designed for tractor driving outside the furrow, which is especially important for tracked tractors or tractors with wide tires. By adjusting the frame, the plough can also be used for ploughing in the furrow, so it is universally usable for both types of ploughing. ORION II OL is manufactured in the range of 6 to 9 shares with a 6+1, 7+1 or 8+1 frame. This allows the plough to be extended or shortened by one share. The plough can be equipped with 3 types of protection: shear bolt, spring or hydropneumatics mechanism. To accurately maintain the working depth, the plough is equipped with an auxiliary support wheel in the front part, and in the rear part we perform depth regulation on the piston of the travel wheel.

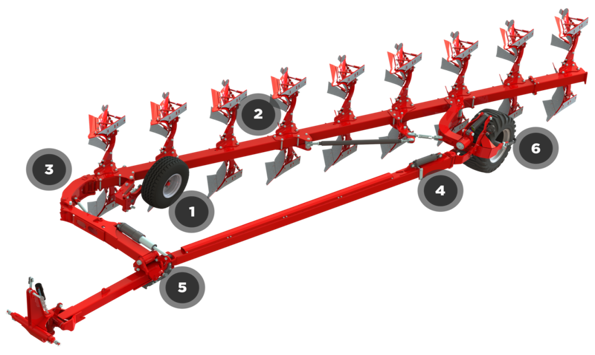

1. 1. Turn of plough with telescopic pistons

   2. Adjusting the engagement of the 1st blade

   3. Hydro pneumatically sprung transport wheel

   4. Mechanical adjustment of blade engagement

   5. Cat. 3/4 hitch

   6. Hydraulic system for ploughing out of the furrow (on-land)

Main Advantages

The plough allows ploughing out of the furrow in combination with tractors with an outer axle width of up to 4.6 m. By simply changing the settings, the plough can also be used for ploughing in the furrow.
