Description

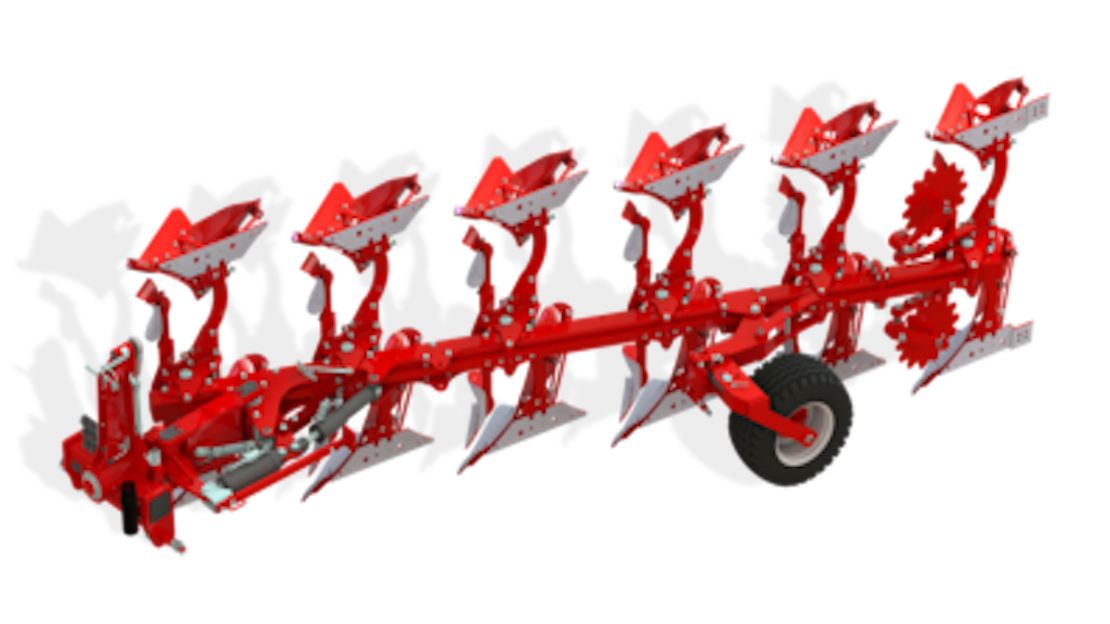

APOLLO I 140 V models are four- to six-plough bodied mounted reversible ploughs designed for tractors from 120 horsepower. Adjustment of plough bodies width is performed continuously by the Vario hydraulic system.This plough is produced with maximum emphasis on strength and long service life which is incorporated into the structure of all its parts. The plough frame is constructed from a high-strength 140 x 140 x 10 mm square steel tube giving the plough stiffness and durability. APOLLO I 140 V ploughs are produced in two versions according to the spacing between the plough bodies, namely the APOLLO I V 140/90 and 140/100.
-

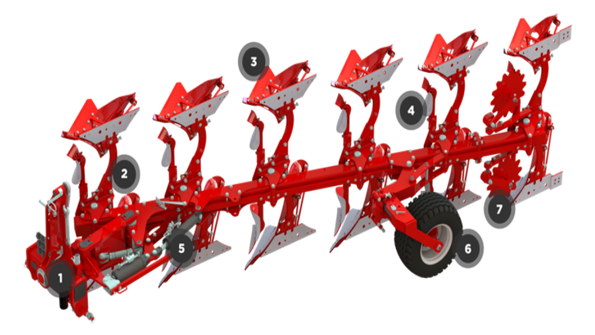

Rotary Head
-
Spring / Share Protection
-
Plough Body
-
Skimmers
-
Hydraulic Adjustment Mechanism
-
Support Wheel
-
Disc Coulters
-
Main Advantages
The Vario system of the APOLLO I 140 V, enables smooth hydraulic adjustment of the plough engagement. The system provides an optimal combination of tractor and plough power in the given conditions. With the Vario plough, you can do ploughing for a larger shot, faster and better.
Technical Parmeters
Technical Parameters |
APOLLO I 140/90 V |
APOLLO I 140/100 V |
|||||
| Number of Ploughshares (pc) | 4 | 5 | 6 | 4 | 5 | 6 | |
| Working Width of One Body (cm) | 30-53 | 30-53 | 30-53 | 30-55 | 30-55 | 30-55 | |
| Plough Full Working Width (cm) | 120-212 | 150-265 | 180-318 | 120-220 | 150-275 | 180-330 | |
| Clearance under the Frame (cm) | 82 | 82 | 82 | 82 | 82 | ||
| Spacing between the Ploughs (cm) | 90 | 90 | 90 | 100 | 100 | 100 | |
| Operating Speed (Km/hr.) | 7 | 7 | 7 | 7 | 7 | 7 | |
| Plough Weight* | |||||||
| Sharing (kg) | 1,690 | 1,890 | 2,120 | 1,710 | 1,920 | 2,150 | |
| Spring (kg) | 1,950 | 2,240 | 2,510 | 1,980 | 2,270 | 2,540 | |
| Tractor Output (Hp/kW) | 120-210 | 150-260 | 180-310 | 120-220 | 150-275 | 180-330 | |
*The weight is only indicative and may vary according to the selected machine.
